250A MIG Inverter Machine

250A MIG Inverter Machine

£1,100.00 Excl. VAT

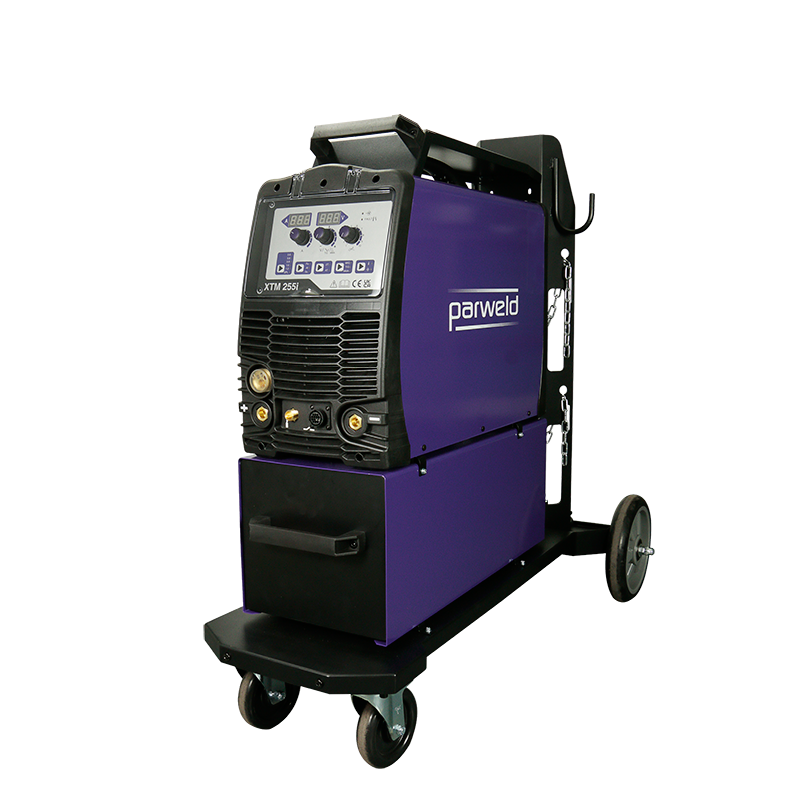

Model No. XTM 255i

The XTM 255i single phase MIG Inverter is a dual voltage high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 255i Power Source Welding Machine comes ready assembled to the TR008 Trolley, which is equipped with a convenient practical drawer attachment.

Key Features Include:

  • Multi-Process MIG/TIG/MMA Welding
  • 110V / 230V Dual Voltage, Single Phase Machine
  • Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
  • Synergic Control
  • Fan On Demand
  • 2T / 4T Trigger Latching
  • Real Time Display of Parameters and Data
  • Soft Switching Technology for improved efficiency
  • Clear Visor for Front Panel Controls Protection
  • Supplied with Gas Hose and 3m Earth Lead
Categories: , , ,

Description

Weight 23 kg
Dimensions 660 × 280 × 500 mm
Phase Single Phase
Machine Style Compact, Portable
Machine Type Inverter
Maximum Current 140A DC, 250A DC
Duty Cycle 250A @ 25% Duty Cycle
Input Voltage 110V 1P, 230V 1P, Smart Switching
Voltage 10.4-20V (TIG), 14.5-26.5V (MIG), 20.4-30V (MMA)
Feed Box 4 Roll Drive
Input Current (Eff) MIG – 32.6A @ 110V / 17.8A @ 230V, TIG – 24.8A @ 110V / 12.9A @ 230V, MMA – 31.4A @ 110V / 19.1A @ 230V
Output DC
Wire Size 0.6-1.2mm
Spool Size 200mm (5kg), 300mm (15kg)
Minimum Fuse Rating 20A, 32A
KVA 8.8
Generator Size (Requires AVC) 10 KVA
Enclosure Protection IP23S
Cooling Air, Fan, On Demand, Water (with Unit Attachment)
Comes With 3m Earth Cable, 3m Input Cable, Gas Hose, TR008 Trolley
Ideal for Applications Industrial Manufacturing, Metal Fabrication, Sheet Metal Work, Synergic Program for Steel Stainless Steel and Aluminium, Training
Special Features 2T/4T Latching, Bottle Stand, Soft switching technology improves efficiency, Storage Drawer, Synergic Control, Synergic Welding Rapid Set Up
Warranty 5 Year Warranty
Conforms To IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant
