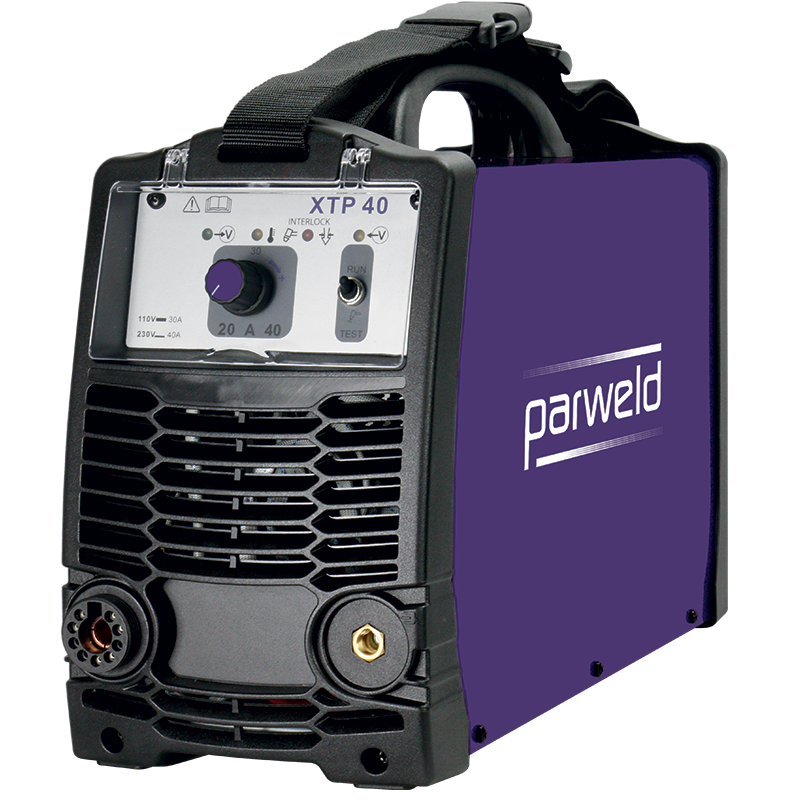

40A Plasma Cutter Inverter Machine

40A Plasma Cutter Inverter Machine

£970.00 Excl. VAT

Model No. XTP 40 Dual Voltage

The variable output of the XTP 40 makes it ideal for cutting metals up to 12mm thick where the output power can be fine tuned to minimise dross on the cut edges. The pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non HF ignition minimises the risk of interference with electronic systems. The XTP 40 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a metal case with carry handle & shoulder strap.

Key Features Include:

  • Dual Voltage 110V / 230V
  • Smart Switching
  • 40A @ 40% Duty Cycle
  • Cuts Any Metal
  • 12mm Production Cut
  • 20mm Severance Cut
  • Lightweight at just 12.6kg
  • Built-in Air Pressure Regulator
  • Auto Over Voltage Protection
  • Over Current Protection
  • Generator Friendly
  • Ideal for Mesh Cutting
Categories: , , ,

Description

Weight 12.6 kg
Dimensions 430 × 170 × 300 mm
Phase Single Phase
Machine Style Compact, Cutting
Machine Type Inverter
Maximum Current 10-40A DC
Duty Cycle 40A @ 40% Duty Cycle
Input Voltage 110V 1P, 230V 1P
Production Cut Capacity 12mm
Severance Cut Capacity 20mm
Input Current (Eff) 16A, 32A
Starting Method Short Circuit
Output DC
Plasma Built-In Air Pressure Regulator
Minimum Fuse Rating 14.8A, 18.5A
KVA 3.7
Generator Size (Requires AVC) 5 KVA
Cooling Air, Fan, Forced
Enclosure Protection IP23S
Comes With 3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch
Ideal for Applications Agricultural, DIY, HVAC, Light Industrial Manufacturing, Maintenance Repair, Site Work
Special Features Cuts any metal, Ideal for Mesh Cutting, Over Voltage + Over Current Protection
Warranty 5 Year Warranty
Conforms To IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
