Sirocco Gas Flow Meter – TIG

£11.67 Excl. VAT

Model No. 706100

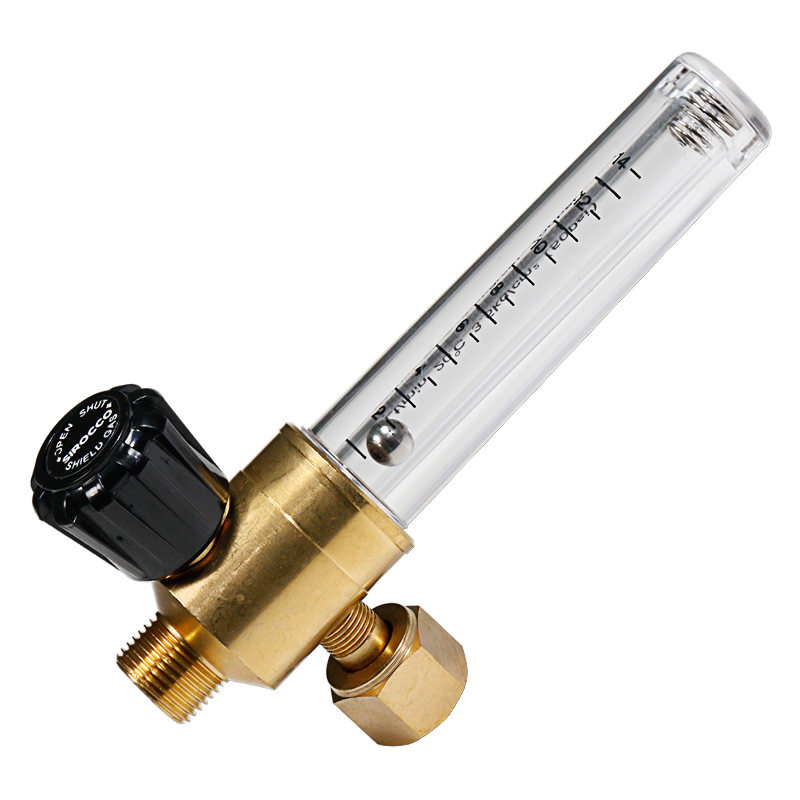

Sirocco Gas Flow Meter, manufactured by Parweld for MIG, TIG and laboratory applications where flow control is required.

Features

  • Air Flow Rate: 0-14lpm
  • Designed from brass bar whilst the tube and cover are moulded from high quality polycarbonate to ensure high impact resistance and clarity.
  • Calibrated to operate at an inlet pressure of 30PSi.
  • Sensitive needle valve provides easy adjustment and the downward facing outlet connection eliminates hose kinking.

Fittings

  • Fitted with standard 3/8” BSP inlet and outlet connections.
Categories: , Brand:

Description

Weight 0.27 kg
Gas Mixed
Connections (inlet and outlet) 3/8″ BSP
Inlet Pressure 30PSi
Bar Material Brass
Tube Material Polycarbonate
Cover Material Polycarbonate
Outlet Connection Position Downward Facing
Needle Valve Sensitive, Easy Adjustment
Conforms To European Pressure Equipment Directive 2014/68/EU (PED), ISO9001: 2015, RoHS Directive 2011/65/EU
Set Size Single Piece Set/Item
